Sheet metal fabrication equipment

Machines that keep cutting after the demo is over.

Fibre laser cutters, CNC press brakes and load-unload automation for contract fabricators and OEMs — with spare parts in the EU and an engineer on the phone within a day.

Request a quote See full specifications

6kW

Max fibre laser source

4000mm

Max bending length

±0.05mm

Positioning accuracy

24h

Engineer response, EU & UK

Representative figures across the current range. Machine-specific values are confirmed in the quotation and the acceptance test report.

Machine range

Three lines that hand parts to each other.

Cut, bend and feed are specified together, so the tower that loads the cutter is not a third-party bolt-on.

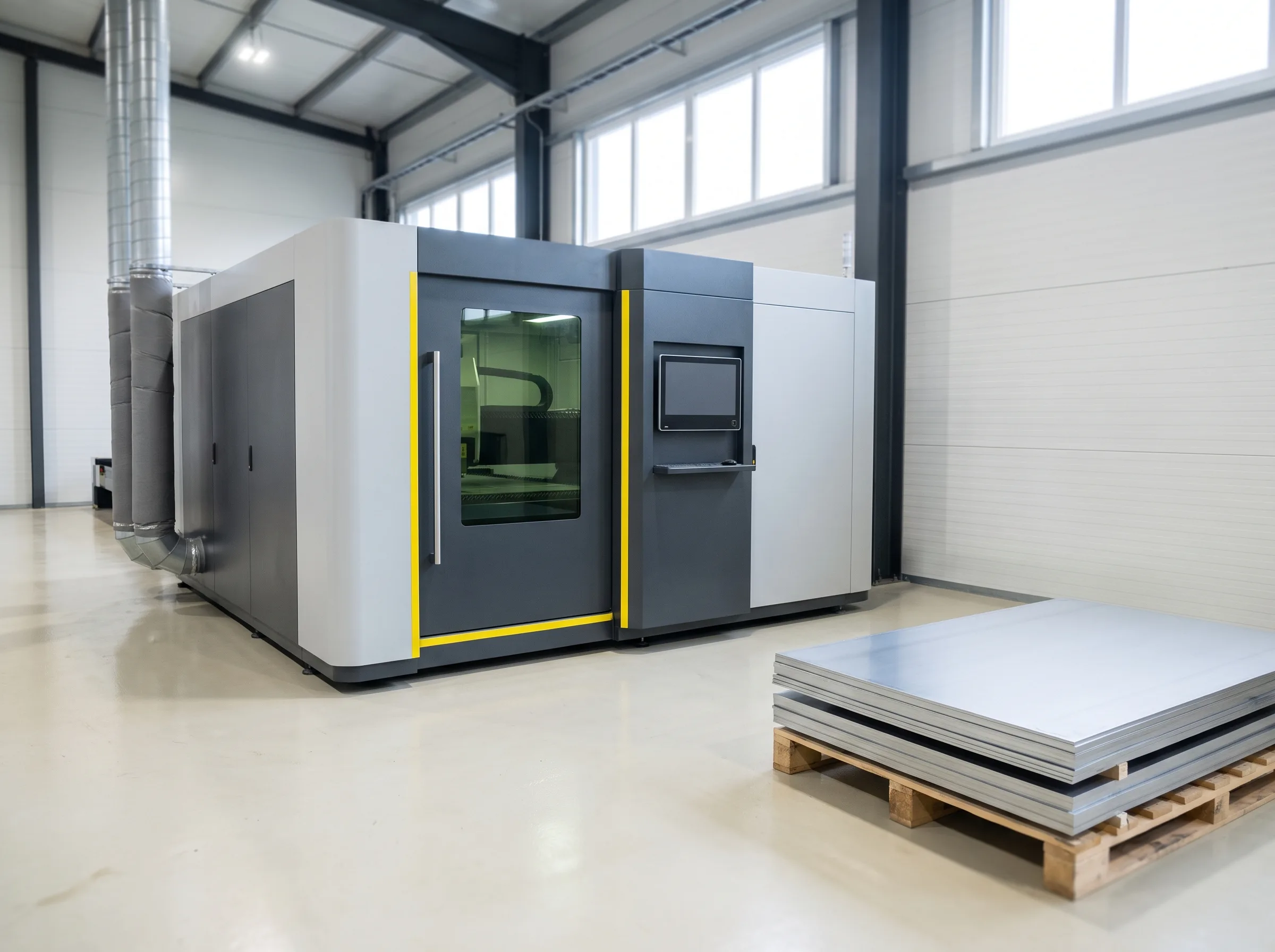

TL series

Fibre laser cutting

Source: 1.5 - 6 kW
Bed: 3000×1500 - 6000×2500 mm
Drive: Linear motor

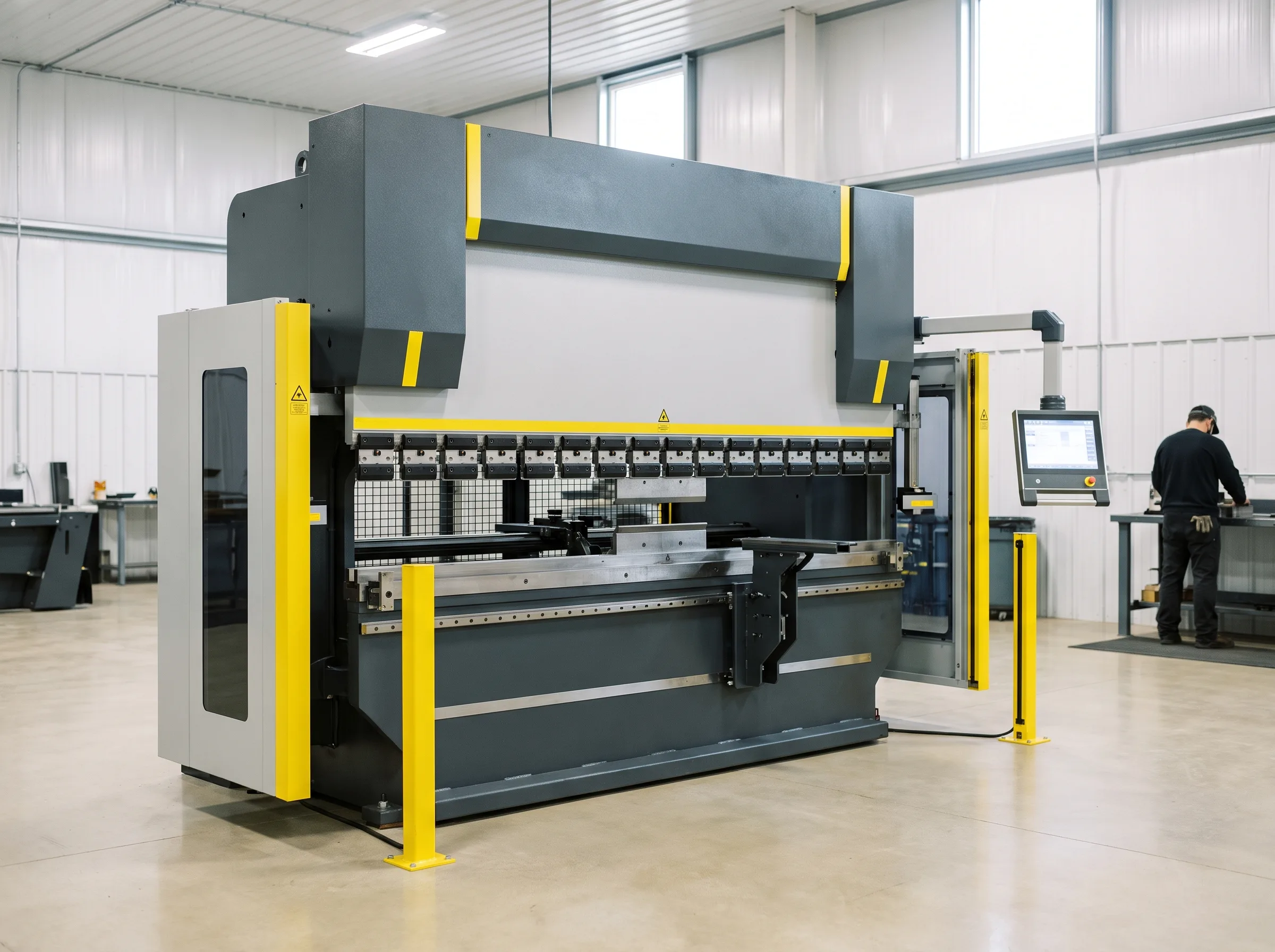

CNC press brake on the shop floor, three-quarter front view showing the upper beam, fitted tooling and yellow guard posts. — TB series press brake, tooling fitted — the backgauge assembly sits behind the bed.

TB series

CNC press brakes

Force: 40 - 400 t
Length: 1250 - 4000 mm
Backgauge: 4 - 6 axis

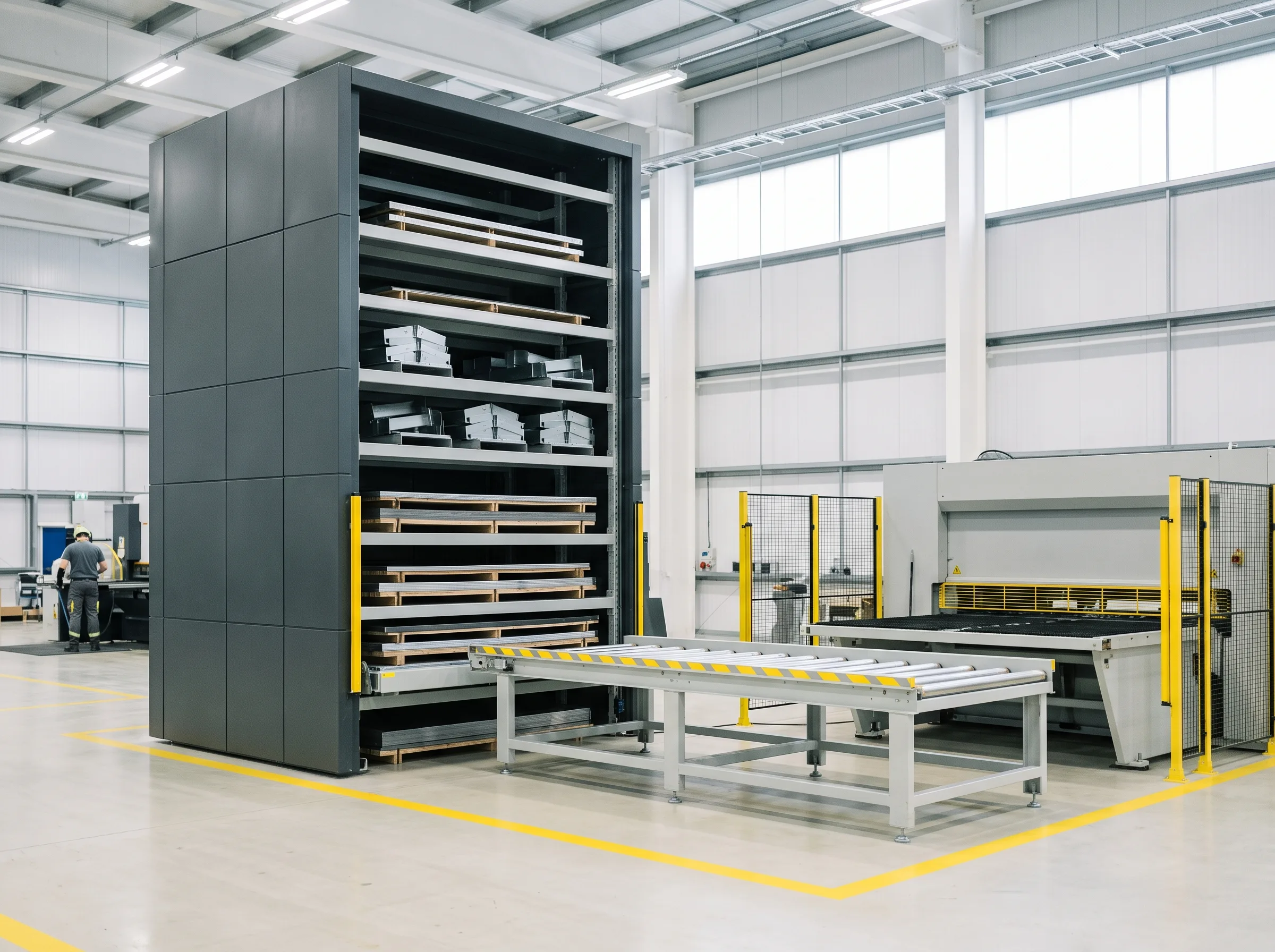

Automated sheet storage tower with its shuttle table extended toward a machine bed on the shop floor. — TA series tower paired with a TL cutter — shelves hold raw sheet and finished parts separately.

TA series

Automation cells

Tower: 6 - 12 shelves
Sheet: up to 6000×2500 mm
Mode: Lights-out capable

The numbers a buyer actually compares.

Published in full so your production engineer can put us next to another quote without asking either supplier for a brochure.

TL-3015 fibre laser cutter specifications
Parameter	TL-3015	Note
Cutting area	3000 × 1500 mm	TL-3015 · larger beds on request
Laser source	3 kW fibre	1.5 / 3 / 6 kW selectable
Positioning accuracy	±0.05 mm	Per VDI/DGQ 3441
Repeat accuracy	±0.03 mm	Per VDI/DGQ 3441
Rapid traverse	120 m/min	X/Y simultaneous
Max sheet weight	900 kg	With automatic pallet changer
Control	Touch HMI + CAM link	Nesting import from DXF / DWG
Extraction	Zoned, 4500 m³/h	Filter cartridge, class M

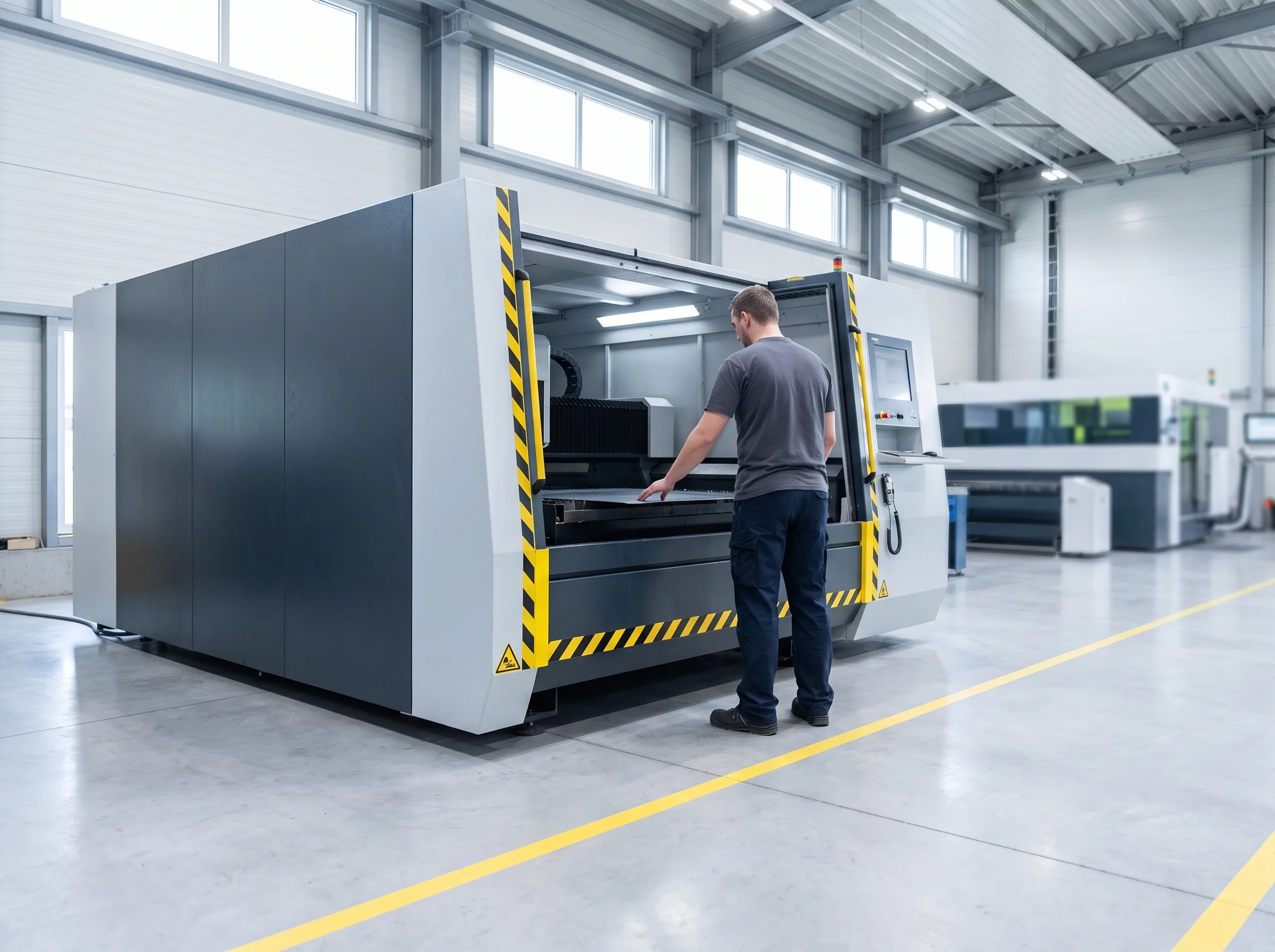

Fibre laser cutting machine on a workshop floor with a technician standing beside it for scale. — TL-3015 with an operator alongside — the enclosure stands roughly shoulder height, and the machine needs a 2 m service aisle on the loading side.

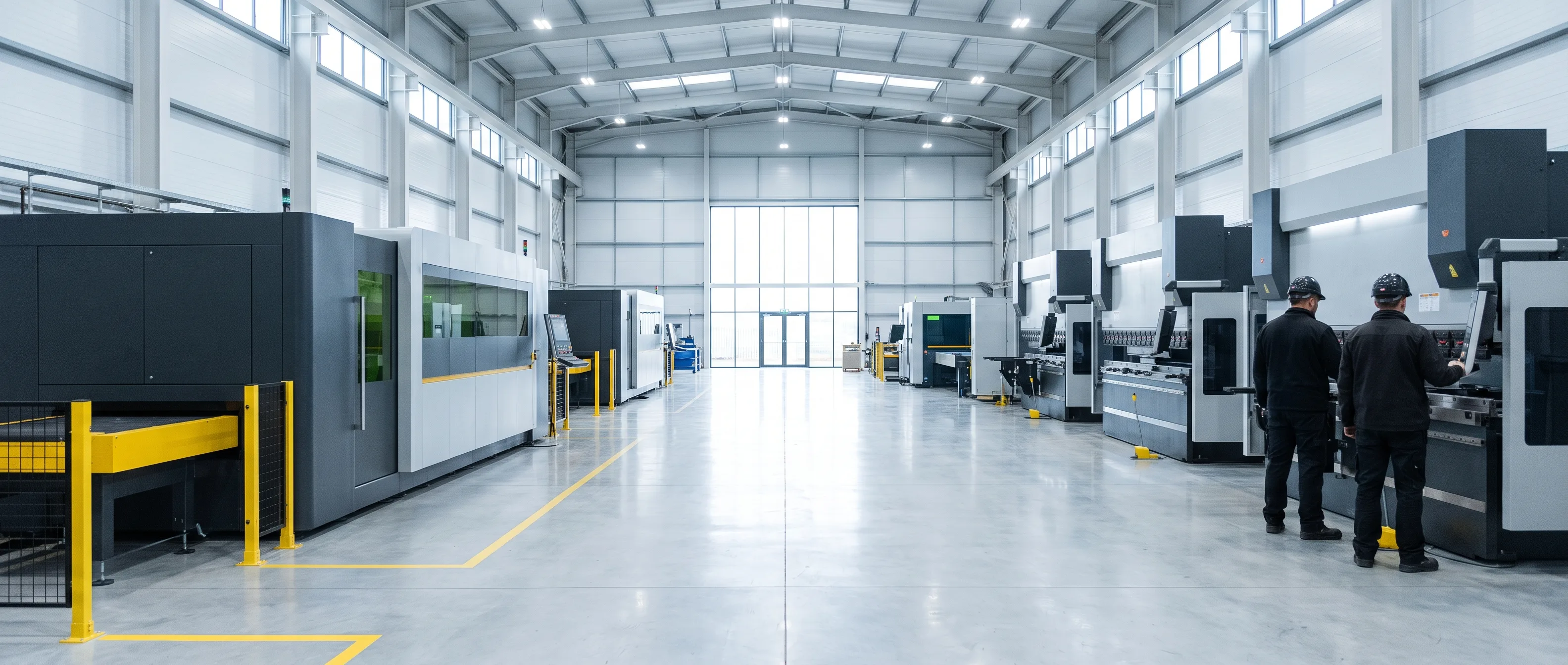

Interior of a contract sheet-metal fabrication shop with a fibre laser cutter on the left and a row of press brakes on the right.

Industries

Four shops, four different bottlenecks.

Which machine we recommend depends on what is actually limiting your throughput — nesting, changeover, bed length or feeding.

01
Contract sheet metal
Nesting efficiency and changeover time decide the margin.
02
Enclosures & cabinets
Repeatable bending programmes, mixed panel sizes.
03
Agricultural machinery
Thicker plate, longer beds, abrasion-tolerant tooling.
04
HVAC & ducting
High sheet throughput, automated loading.

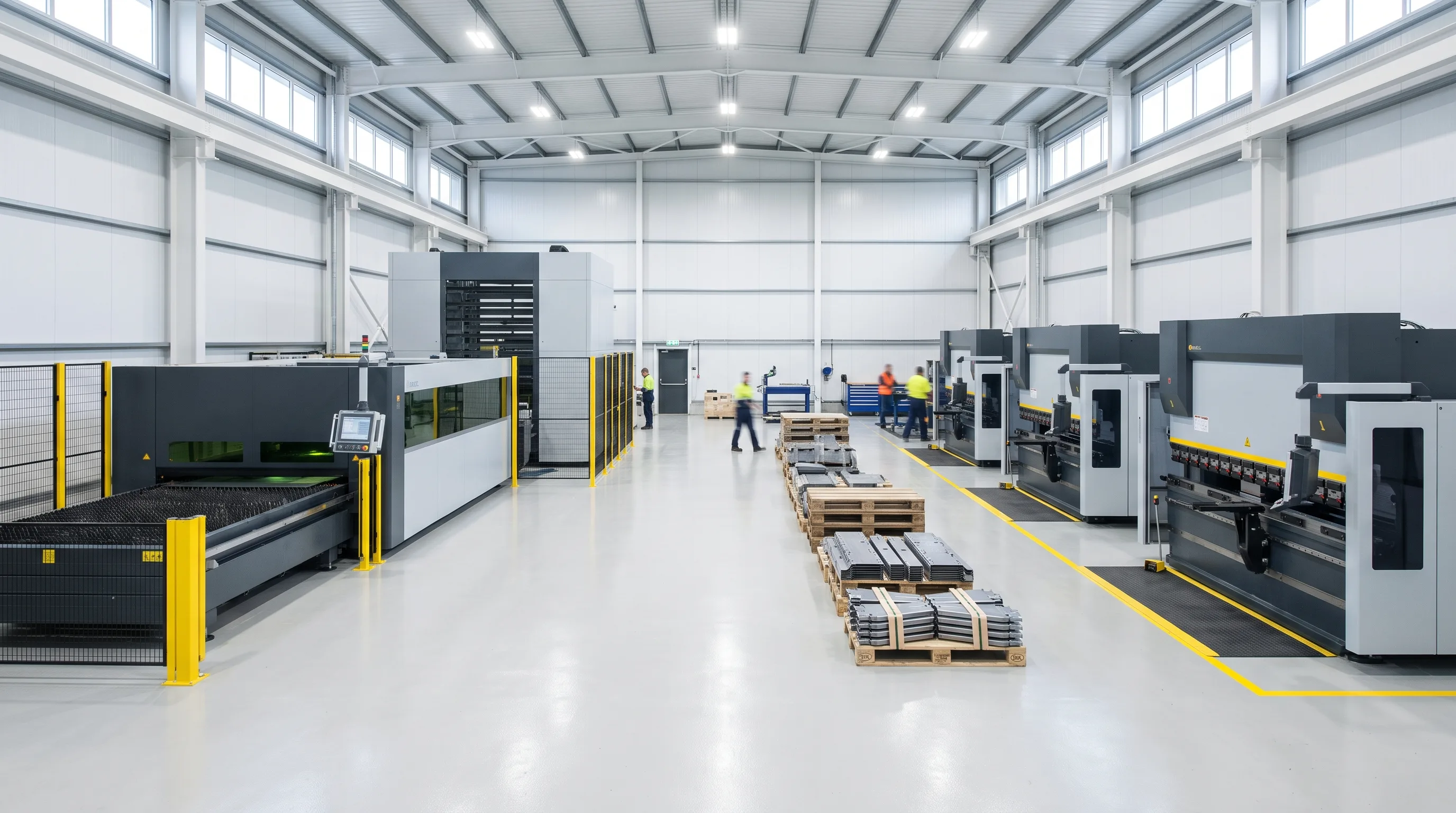

Interior of a metal fabrication plant with cutting and bending machines in rows and pallets of formed parts. — A typical installed layout: cutter and tower on the left bay, brakes on the right, with finished parts staged between them.

Results

What changed on the shop floor.

Each profile leads with the measured result the customer got, not with the tonnage we shipped.

31%shorter changeover

Contract fabricator

Poland

2 → 1shifts to clear backlog

Enclosure maker

Spain

4000 mmbending length added

Agricultural OEM

United Kingdom

Representative project profiles illustrating typical configurations and measured improvements. These are not client records; named references are provided under NDA during commercial discussion.

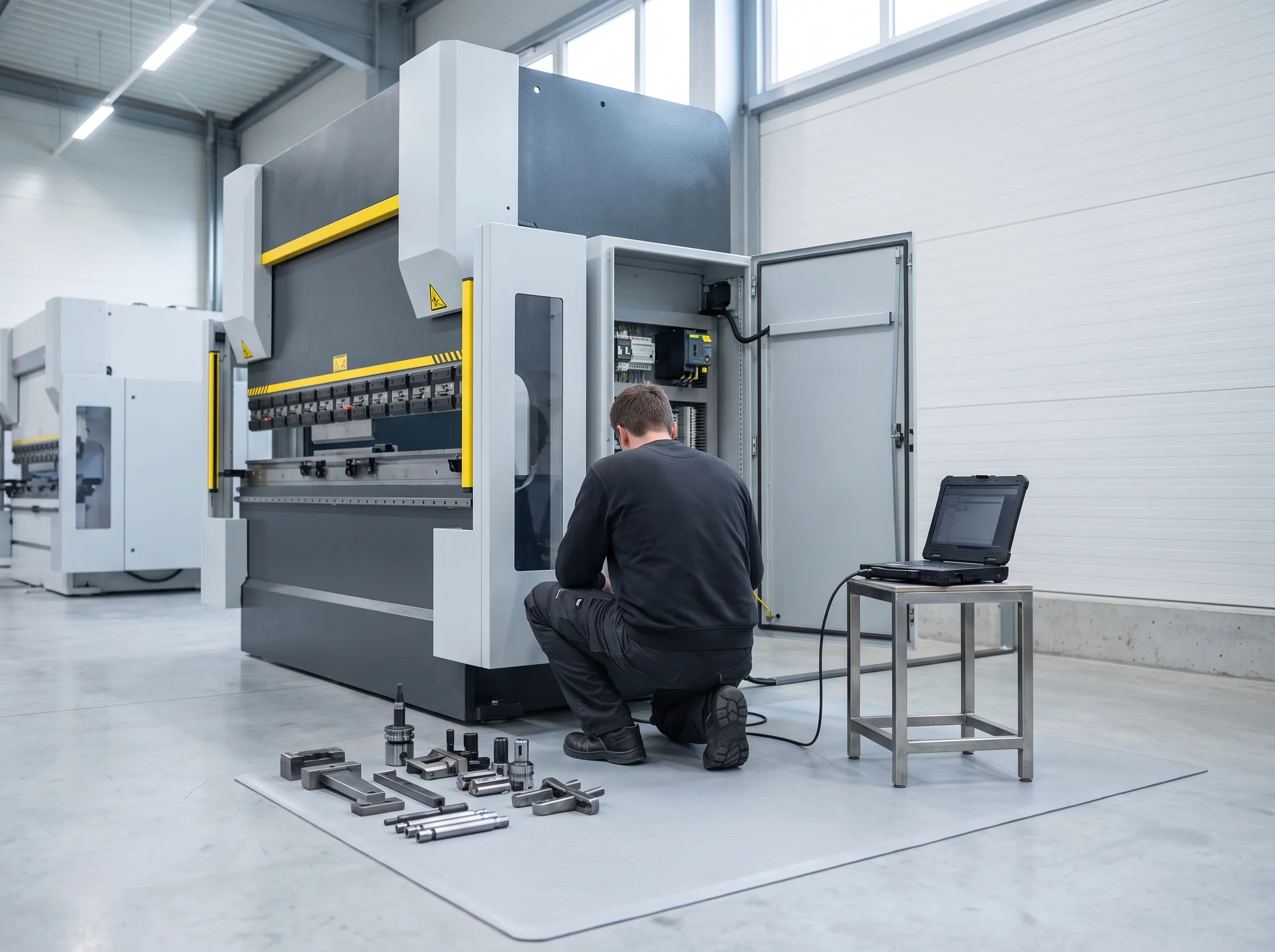

Service engineer working at the open side panel of a CNC press brake with a laptop on a stool beside him. — A scheduled visit on a TB brake — wear parts laid out before the panel comes off, so the machine is down for the check, not for the parts.

Service is the part you buy twice.

A machine down for a week costs more than the discount you negotiated, so the response terms are on this page rather than in an annex.

Commissioning

Installation, alignment and operator training on your own parts, not a demo file.

Spare parts

Wear parts and optics held in the EU warehouse, dispatched same day.

Remote diagnostics

Machine dials home; most faults are identified before an engineer travels.

Preventive service

Scheduled visits with a written report and a measured accuracy check.

Documentation

Take the drawings to your production engineer.

Foundation drawings and acceptance test formats are open — you should be able to plan the floor before you talk to us.

TL series brochure28 pages · EN / DE·5.1 MBFull cutting range with bed sizes, source options and footprint drawings.Download TL series brochure, PDF, 5.1 MB
TB series brochure24 pages · EN / DE·3.8 MBPress brake range, tonnage table and backgauge configurations.Download TB series brochure, PDF, 3.8 MB
Foundation drawings6 sheets · 1:50·1.2 MBFloor loading, service connections and clearance envelopes per model.Download Foundation drawings, DWG, 1.2 MB
Acceptance test report4 pages · sample·620 KBA filled VDI/DGQ 3441 accuracy record, so you know what you sign off.Download Acceptance test report, PDF, 620 KB

Talk to an engineer

Send the part, not the enquiry form.

Send a DXF and the material and thickness. We will come back with cycle time, nesting efficiency and the machine that fits — before anyone talks about price.

Engineer response: Within 24 hours, EU & UK business days
Email: sales@thurmark.com
Phone: +31 (0)40 000 0000
Works: De Run 4321, 5503 LM Veldhoven, Netherlands
