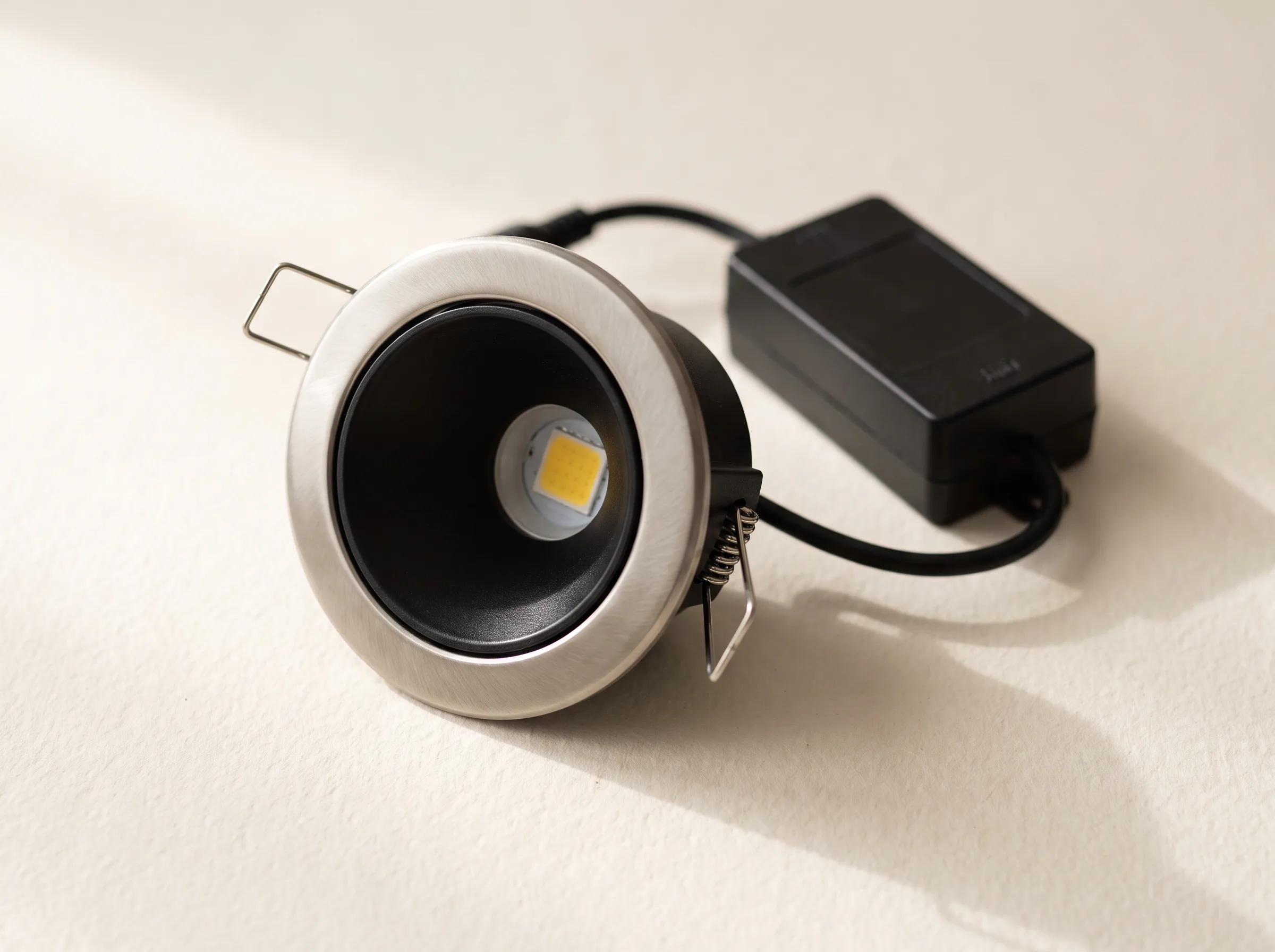

HW-DL series
Recessed downlights
- Output
- 7 - 18 W

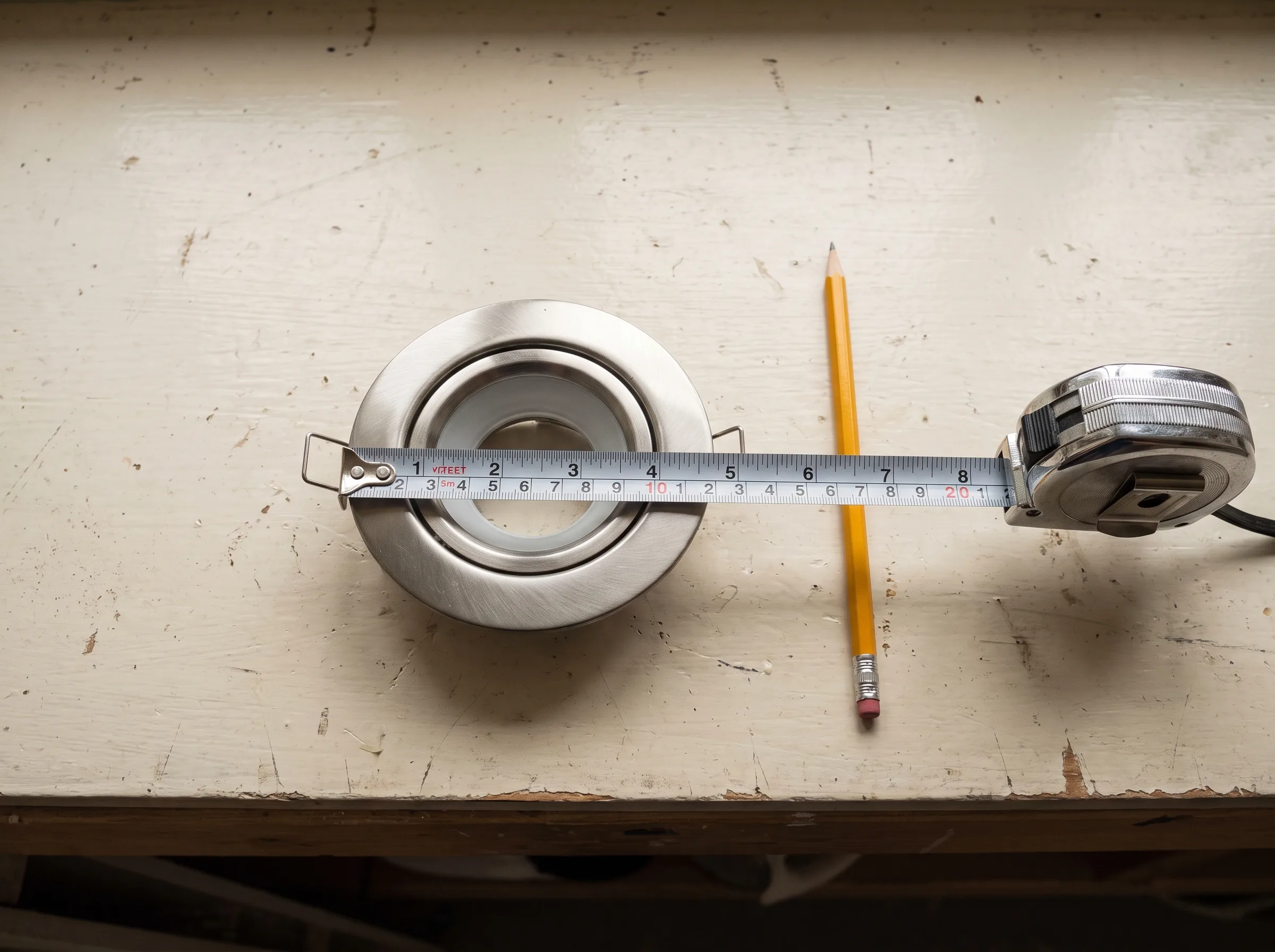

- Cut-out
- 75 / 90 / 110 mm
- Ingress
- IP44
Architectural lighting OEM
Downlights, track and panels — built under your label.
Standard housings, 500 pcs minimum, samples in seven days and the photometric files your specifier will ask for.
The range
Three families, one driver platform.
Every series runs the same driver and the same LED board format, so a mixed order still arrives as one spare-parts problem rather than three.

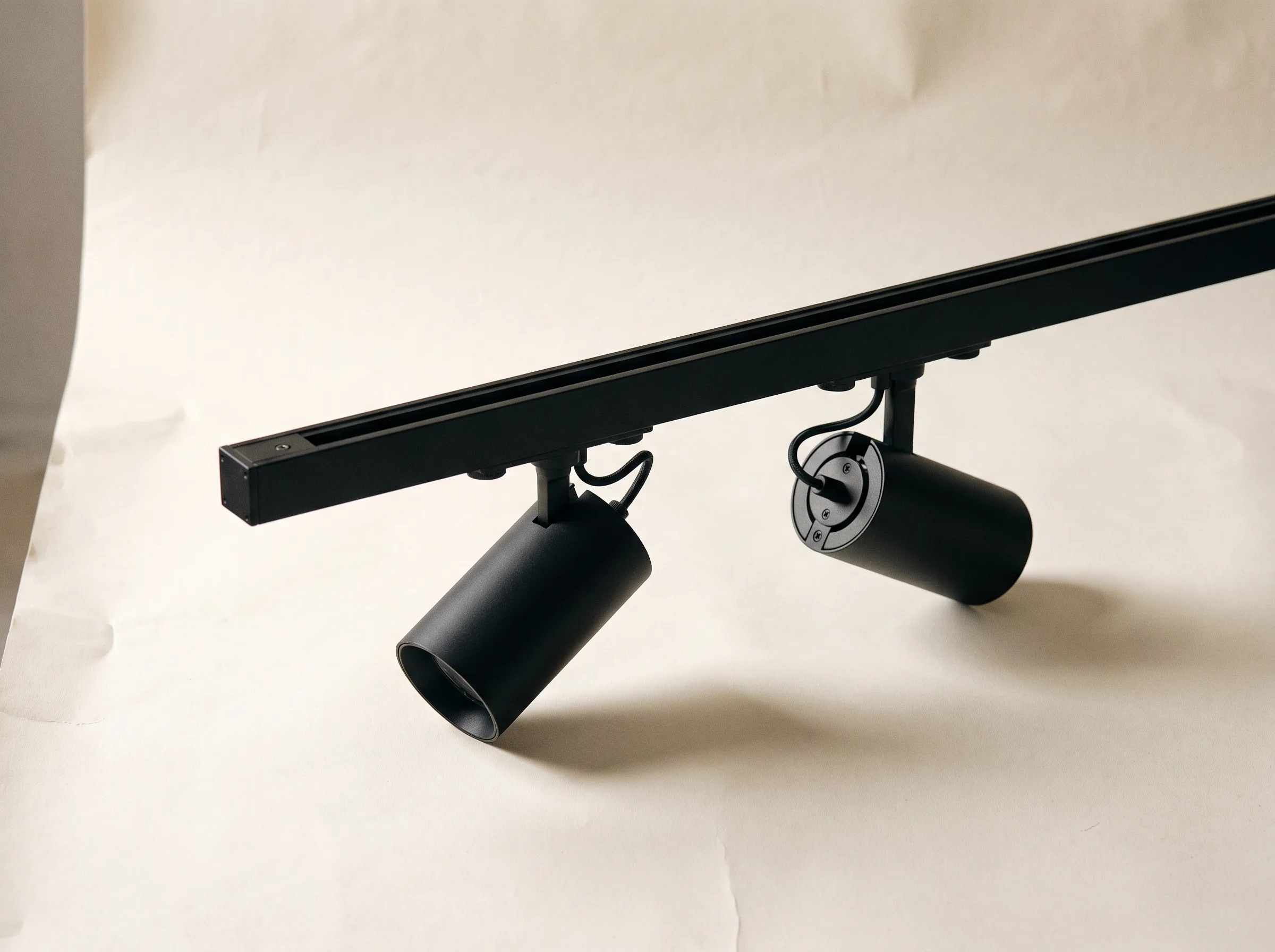

HW-TS series
Track spotlights
- Output
- 12 - 35 W
- Track
- 3-circuit
- Beam
- 24° / 36° / 60°

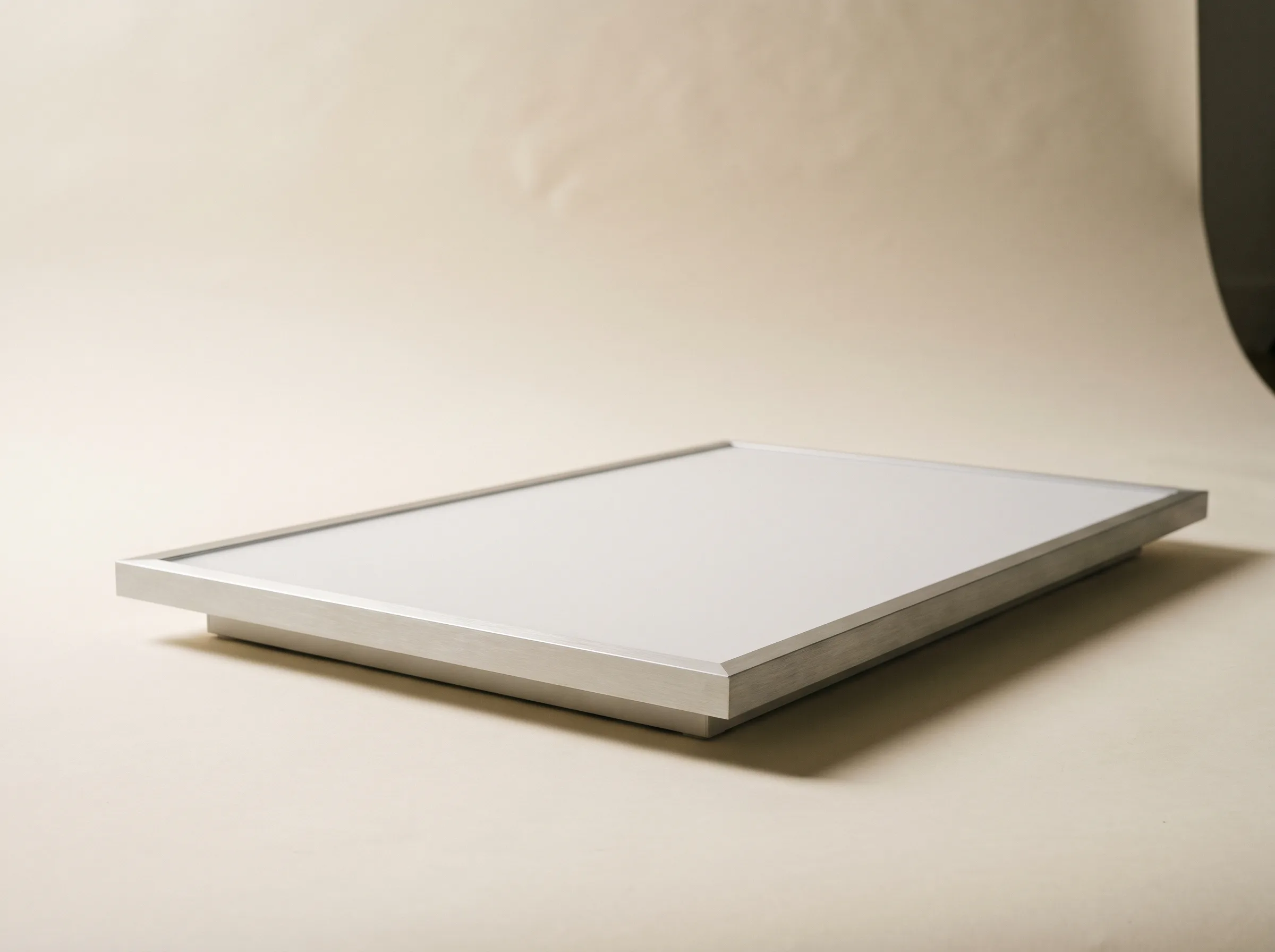

HW-PL series
Backlit panels
- Output
- 30 / 40 W
- Size
- 600×600 · 1200×300
- Glare
- UGR < 19
Commercial terms
The four numbers you would email to ask for.
500pcs
MOQ per SKU, mixed CCT allowed
7days
Sample dispatch, from stock housings
25 - 35days
Production lead time, standard range
0
Tooling fee on standard housings
Representative terms for the standard range. Territory, payment and warranty terms are set in the supply agreement; non-standard housings are quoted separately.
How OEM works here
Four steps, and none of them is tooling.
Most private-label projects never need a new mould. The work is picking the nearest standard housing and getting your artwork and photometrics right.
01
Enquiry and specification
You send beam angle, CCT, CRI, driver and dimming protocol. We come back with the nearest standard housing rather than a new tool.
02
Sample and photometrics
Sample ships with its LM-79 report and IES file, so your specifier can run the layout before the order.
03
Private label
Your logo on the fitting and the box, your manual, your barcodes and carton marks. Artwork proofed before the run.
04
Production and shipping
Full run with batch photometric records. FOB Shenzhen, or DDP into an EU or UK warehouse.

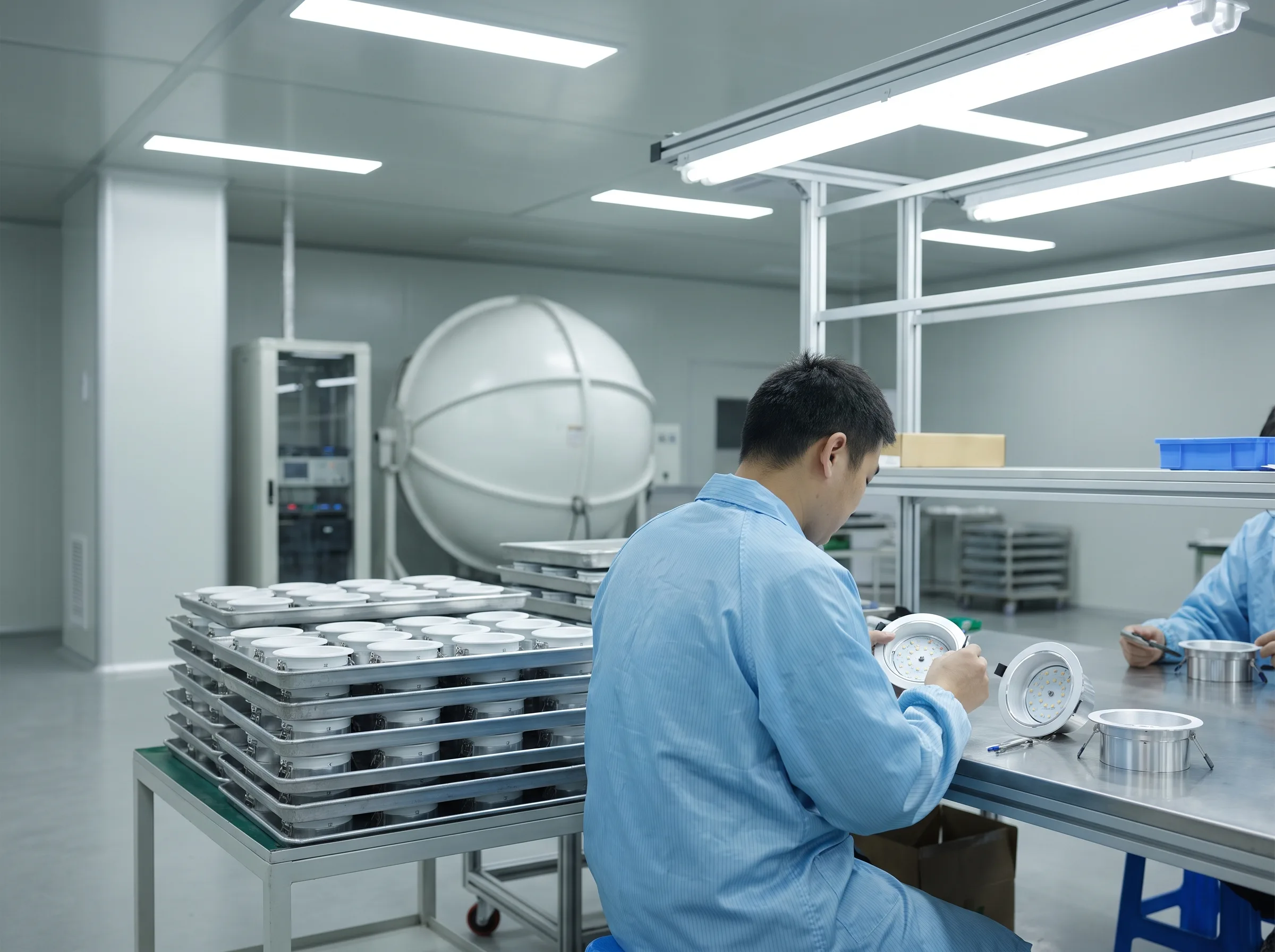

Quality control
What happens before the carton is sealed.
A lighting buyer cannot audit every supplier. These are the four checkpoints that are worth asking any of us to evidence.
- 100% aged
- Every finished fitting runs a powered ageing cycle before packing — infant failures do not leave the plant.
- Batch photometrics
- Integrating sphere test per production batch, lumen output and CCT logged against the batch number.
- Salt spray on outdoor
- IP-rated housings sampled at 48 hours neutral salt spray before the run is released.
- Third-party audit
- ISO 9001 quality system, open to buyer or agency audit and to a live video walkthrough.
Specifications
The table your specifier will copy into their schedule.
Real text, not an image of a datasheet — so it can be searched, quoted and pasted straight into a lighting schedule.
| Model | Power | Output | CCT | CRI | Beam | Cut-out / size | IP |
|---|---|---|---|---|---|---|---|
| HW-DL07 | 7 W | 700 lm | 2700 / 3000 / 4000 K | 90 | 36° / 60° | Ø75 mm | IP44 |
| HW-DL12 | 12 W | 1200 lm | 2700 / 3000 / 4000 K | 90 | 36° / 60° | Ø90 mm | IP44 |
| HW-DL18 | 18 W | 1850 lm | 3000 / 4000 K | 90 | 24° / 36° | Ø110 mm | IP44 |
| HW-TS24 | 24 W | 2400 lm | 2700 / 3000 / 4000 K | 92 | 24° / 36° / 60° | Track | IP20 |
| HW-PL40 | 40 W | 4400 lm | 3000 / 4000 K | 85 | Diffused | 600×600 mm | IP40 |
Certification
Listed per standard, per market and per series, with the certificate number — a standard name on its own cannot be checked.
| Standard | Market | Certificate no. | Covers |
|---|---|---|---|
| CE / EN 60598-1 | EU | TUV-EU-2024-40218 | All series |
| RoHS 2011/65/EU | EU | SGS-RH-2024-11907 | All series |
| SAA AS/NZS 60598 | AU / NZ | SAA-2024-207713 | HW-DL · HW-PL |
| ETL / UL 1598 | US / CA | ETL-5019442 | HW-DL · HW-TS |
DownloadsNo registration. Take them to your internal review.
- Product catalogueFull range with dimensions, cut-outs and packing dataPDF · 8.4 MB
- Photometric filesIES and LDT for every SKU in the table aboveZIP · 2.1 MB
- Test reportsLM-79 and LM-80 for the current production batchesPDF · 3.6 MB
- Private label guideArtwork templates, carton marks and barcode rulesPDF · 1.2 MB
Specification and certificate numbers are representative values for this demonstration. Replace them with the issued figures before publication — a professional buyer treats an unverifiable certificate as no certificate at all.

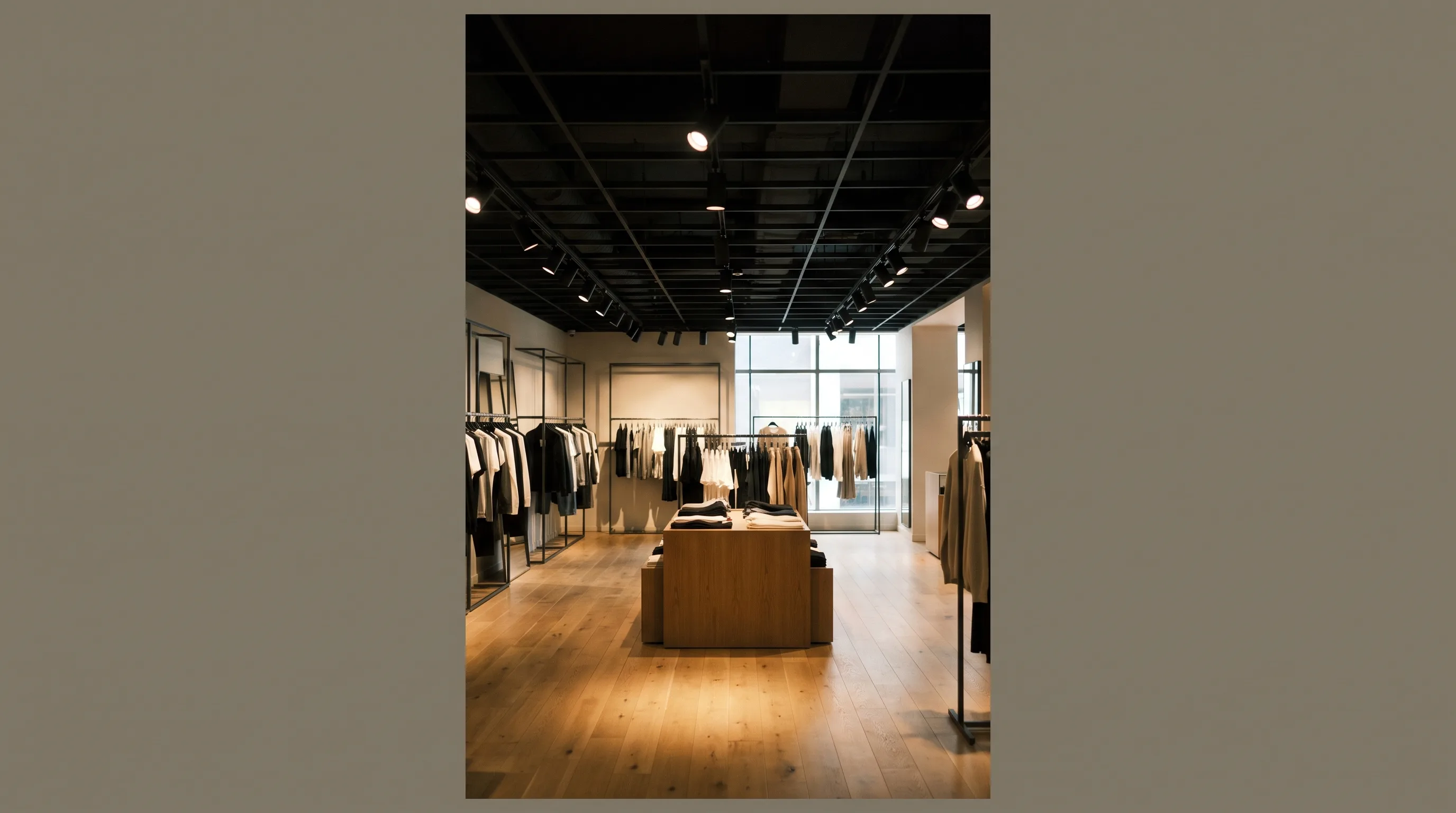

Where they end up
Retail, hospitality and workplace — mostly under someone else’s name.
Beam angle and glare control decide whether a fitting survives the specification stage. Both are in the table above, and both are in the IES file that ships with the sample.
Delivered orders
Quantity, customisation, lead time.
Three profiles in the format a sourcing manager actually compares — what was ordered, what was changed, and how long it took.
4,200pcs
Private-label downlights
Standard HW-DL12 housing with the buyer’s trim colour and their own box artwork. No tooling, because the cut-out matched their existing ceiling spec.
1,800pcs
Track spots, custom bin
HW-TS24 restricted to a single 2700 K colour bin so the wholesaler could sell them as a matched set across three years of repeat orders.
3,500pcs
Panels and downlights, DDP
Mixed order across two series shipped DDP to a Dubai warehouse, with batch photometric records supplied for the client’s handover file.
Representative order profiles illustrating typical quantities, customisations and lead times. These are not client records; named references are shared under NDA during commercial discussion.
Request a quote
Send the spec. We will send a price and a sample date.
Wattage, colour temperature, beam angle, quantity and destination are enough for a quotation. If you would rather start with a sample, say so and skip the pricing round.
- Reply time
- Within 24 hours on business days
- +86 000 0000 0000
- Samples
- Charged and credited back against the first order
- Factory
- Zhongshan, Guangdong · audits and video walkthroughs welcome
Phone number and address are demonstration placeholders — replace with the real entity before publication.
